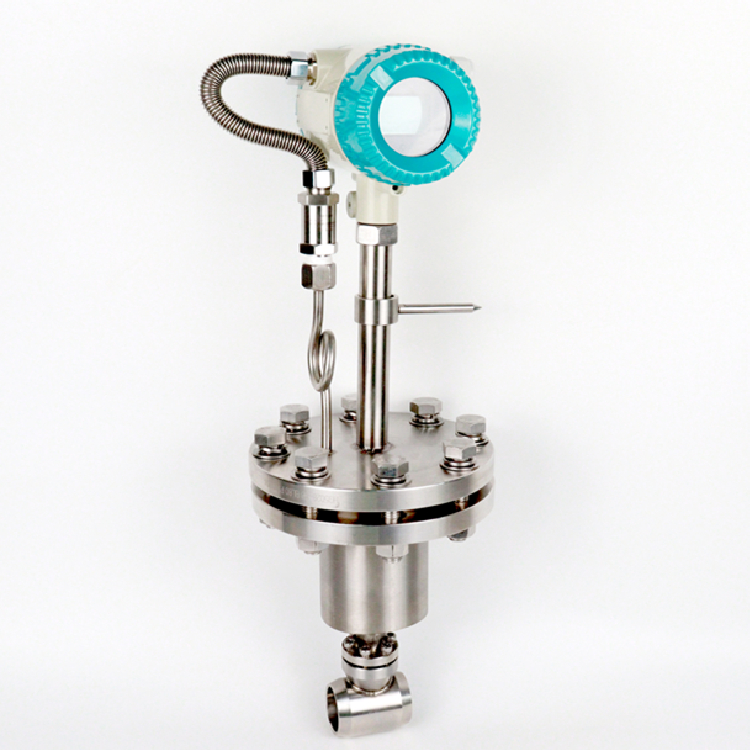

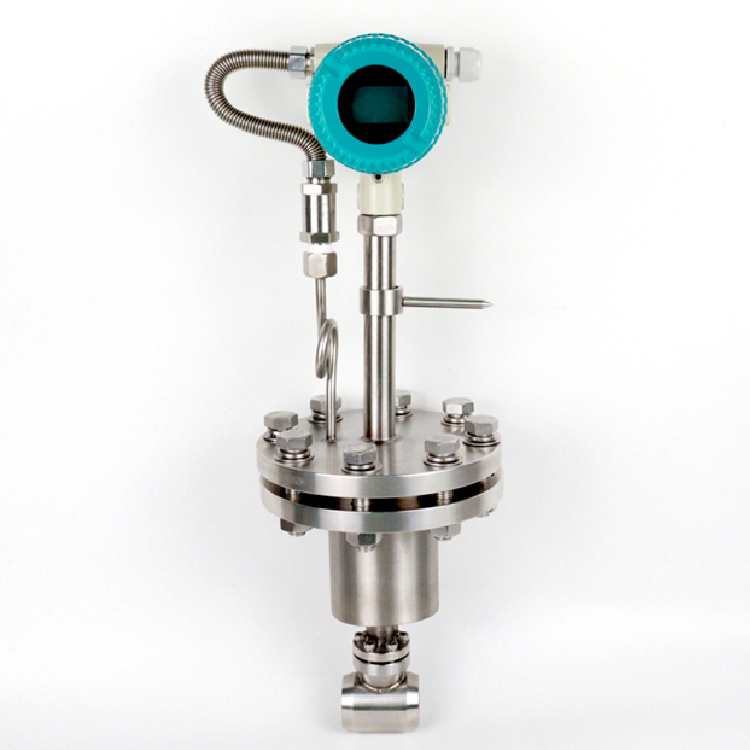

Insertion type vortex flow meter

Insertion type vortex flow meter

Applicable mediumgas, liquid, steam

Not applicable

The biggest advantage of the plug-in vortex flowmeter is that it has excellent anti-vibration performance, no zero drift, and high reliability. Through a large number of waveform analysis and spectrum analysis on the vortex flowmeter for a long time, the best probe shape, wall thickness, height, and probe shaft are designed
0371-26665688 13353783998
Description of product details

Introduction


Insertion vortex flow meter is used in numerous branches of industry to measure the volume flow of liquids, gases and steam. Applications in the chemicals and petrochemicals industries, for example, in power generation and heat-supply systems involve widely differing fluids: saturated steam, superheated steam, compressed air, nitrogen, liquefied gases, flue gases, carbon dioxide, fully demineralized water, solvents, heat-transfer oils, boiler feedwater, condensate, etc.


Features

?

1. Simple structure,? no moving parts, high reliability

2. Suitable size DN200--600.

3. High accuracy 1.5%, 2.5%

4. Resist high temperature up to 350℃,normal temperature up to 250℃

5. Integral forging, anti-rust, long service life

6,Less pressure loss, lower operating costs, more energy-saving significance.


Specifications


Measuring diameter

DN200~600

Relative humidity

5℃~90℃

Atmospheric pressure

86~106kPa

Medium temperature

Standard: -40℃~+250℃

High temperature: -40℃~+350℃

Nominal pressure

1.6MPa;2.5MPa;4.0MPa;6.3MPa

Media type

Liquid, gas, steam

Accuracy class

Liquid 1.5%

gas, steam 2.5%

Power supply

12~24V DC, battery power

Output signal

4~20mA
